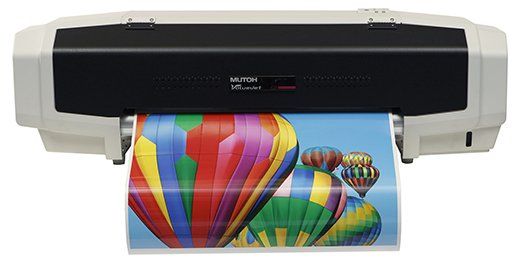

ValueJet 628

Overview

The Mutoh ValueJet-628 is an Eco-Sol printer offering the choice of two ink configurations as well as DropMaster technology. With a maximum media width of 630mm (24.8”) and built-in heaters, the printer supports two different combinations of up to six inks simultaneously, including 2 x CMYK or CMYK,  Lc, Lm, inks. The VJ-628 is best in class for endless creative possibilities.

​

The VJ-628 offers great value for print shops, startups and design studios. Applications include printing vinyl, banners, stickers, specialty retail signage and prototypes.

​

Print high quality 1440 dpi output for photographic results or create custom banners, indoor and outdoor signs or custom labels and stickers for specialty, retail, industrial or commercial applications. The broad capabilities of this printers are thanks to Mutoh’s innovative i² Intelligent Interweaving printing technology that produces impeccable prints every time by virtually eliminating banding.

​

For increased productivity on the ValueJet 628, there's also an optional take-up unit available, meaning you can run long print jobs while you’re doing other things. The printer has built-in heaters for crisp Eco-Solvent print quality and so dries the print job before it gets to the take-up unit.

​

The VJ-628 utilises Mutoh’s exclusive DropMaster print automation technique which assures the highest dot placement accuracy and eliminates the need for regular bi-directional alignment adjustments that are the norm on competitor products.

Add a ValueCut-600 cutter to complete your workflow to allow you to print and cut jobs and create stickers and decals, giving you the best of both worlds: you can be printing while cutting at the same time - not one or the other. In fact, the VJ-628, coupled with the

VC-600 cutter, will allow you to print then cut a job before our nearest competitor can finish printing the job alone!

The ValueJet 628 is a tabletop unit (as is the VC-600 Cutter), so you can run the entire production from one bench in your studio. You don’t have to, of course, and that’s why we also offer an optional stand to free up precious bench space.

​

​

Features

Small 24 inch printer fits perfectly into any print shop

Print with Mutoh Eco-Ultra ink, up to 6 colours

Create custom clothing decals, stickers, indoor and outdoor signage and much more

Use on a table-top or with optional stand - and add a take-up unit for productivity

Specifications

Print head Drop-on-demand Micro Piezo Inkjet Technology

Head Height Two level adjustment of Low: 1.2mm / High: 2.5mm

Number of Heads 1

Ink Type Eco-Solvent

Variable Dot Yes

Minimum Droplet Size 3.5pl

Print Modes 1440/1080/720/540/360 dpi 30 modes

Colour Options CMYK x 2 / CMYK Lc Lm

Production Speed 9 sqm/hr at 720x720 dpi

Max Resolution 1440 dpi

Head Height Low 1.2mm / High 2.5mm

Max. Media Width 630mm

Max. Print Width 620mm

Heating/Drying System Pre/Post heaters as standard

Media Roll Diameter/Core 6" max./Core 3" or 2"

Take-Up System Available as an option

Stand Available as an option

RIP Software FlexiSIGN & PRINT MUTOH Edition

Media Auto Cut Yes

Power Requirements 200-240V AC@50Hz Single Phase

Operating temperature 20°C-32°C

Operating Humidity Range 40%-60%

Dimensions (WxDxH) 1194x432x356

Weight 33kg/Stand 8.7kg

Indoor and Outdoor Posters

Stickers, Labels and Decals

Signs and Banners

Heat Applied Decals for Apparel

Point-of-sale displays

Mockups and Prototypes

Vehicle and Window Graphics

Photographic Prints

Fine art Reproduction
